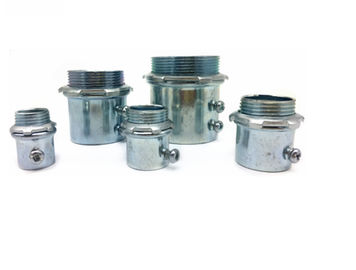

DE SCHAKELAAR VAN EMT SETSCREW
|
UL 514B
|
STAAL
|
Gegalvaniseerd zink
|
Wanneer concreet-vast Vastgebonden
|
Geschikt voor toepassingen boven 600V
|
Verbindt EMT-buis met staaldozen en andere metaalbijlagen
|
Grootte 2-1/2“ aan 4“ is ook vermeld voor STIJF en IMC Buizen
|
Cat# | Grootte | D | D2 | L | |
Sscn-s | -050 | 1/2“ | 18.5 | 21.5 | 35 |
Sscn-s | -075 | 3/4“ | 24 | 27 | 39 |
Sscn-s | -100 | 1“ | 30.2 | 34.2 | 43 |
Sscn-s | -125 | 11/4“ | 39 | 43 | 51 |
Sscn-s | -150 | 11/2“ | 44.8 | 48.8 | 62 |
Sscn-s | -200 | 2“ | 56.5 | 60.5 | 77 |
Sscn-s | -250 | 21/2“ | 74 | 80 | 86 |
Sscn-s | -300 | 3“ | 90.5 | 96.5 | 94 |
Sscn-s | -400 | 4“ | 115.5 | 121.5 | 107 |
